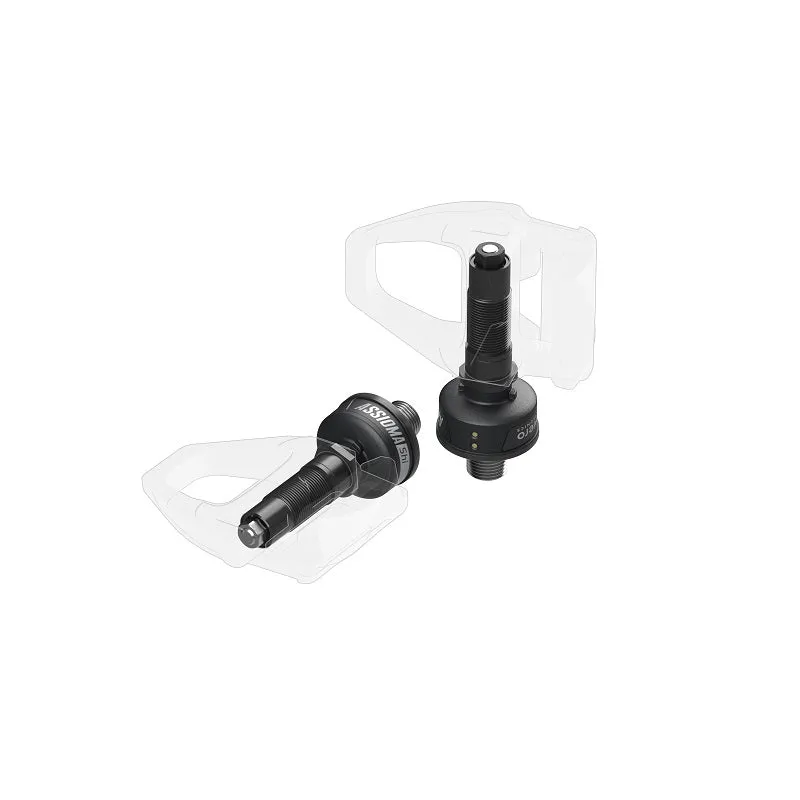

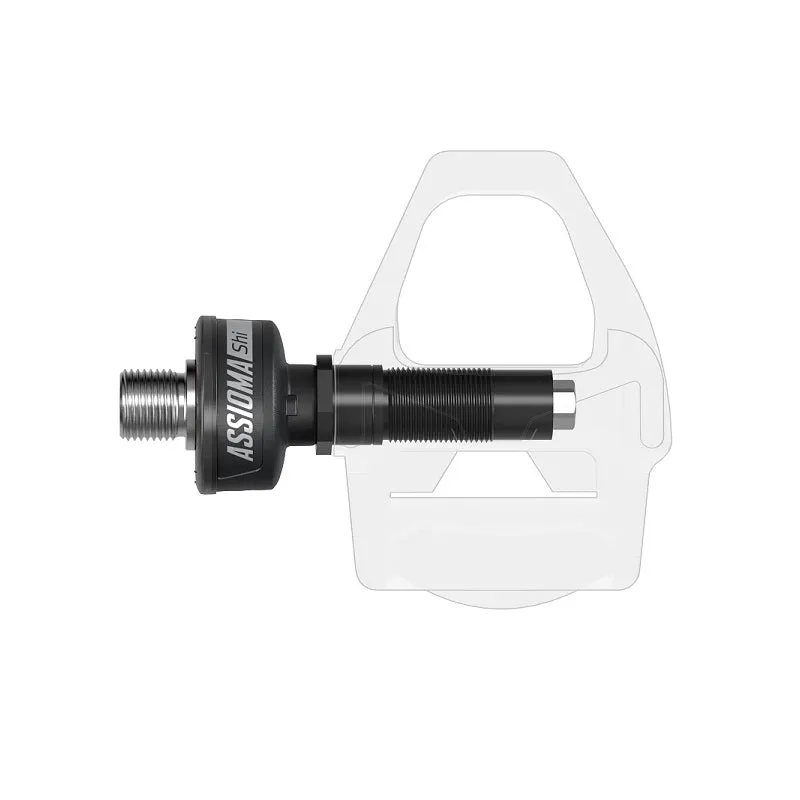

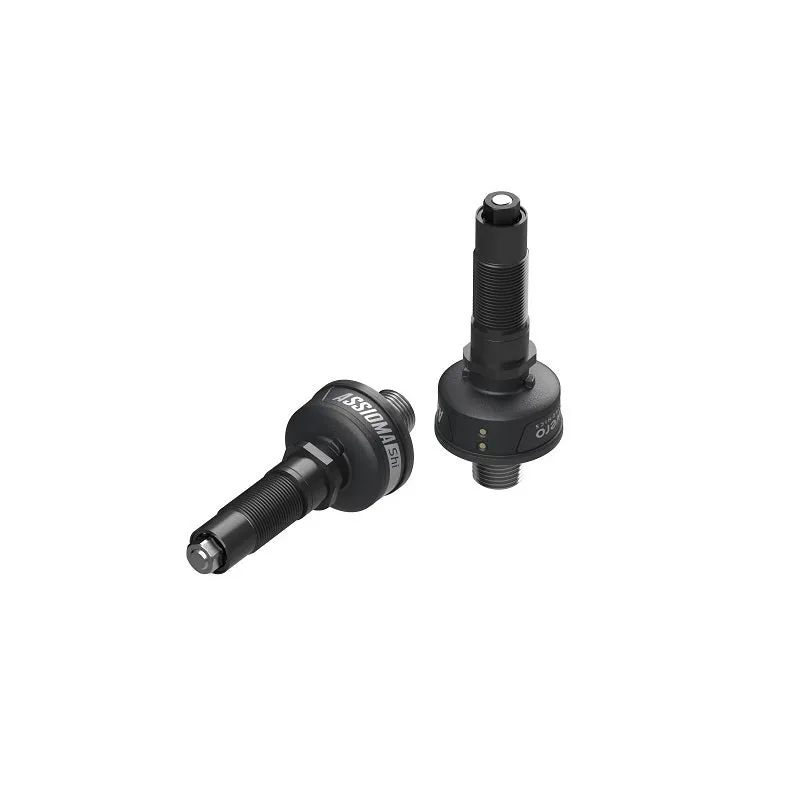

Designed for the compatibility with Shimano road, Assioma DUO-Shi has been designed for Shimano road users as it offers the opportunity to keep on riding with your current Shimano pedal bodies* without giving up on the precision of Assioma.
Easy to install
Install and move your Assioma from one bike to another just like your normal pedals. You can do it easily and without extra tools or the need of a mechanic.
Installation into your own Shimano® pedal bodies
Installing Assioma DUO-Shi into your own compatible Shimano® pedal bodies* is simple and quick.
Assioma DUO-Shi is compatible with the following Shimano® pedal bodies: PD-R8000, PD-R7000, PD-6800, PD- R550 e PD-R540.
Increased Q-factor? The Q-factor of Assioma Look® version is of 54mm, whereas that of Assioma DUO-Shi measures 64mm with the PD-R7000/R550/R540 pedal bodies and 65mm with the PD-R8000/6800.
IAV Cycling Dynamics
Assioma provides advanced metrics called IAV Cycling Dynamics: IAV Power Phase and IAV Rider Position. These metrics, combined with the classic power data, permit to analyse in details your pedalling technique and how your position on the bike influences performance.
IAV Power and gyroscope
Unlike others, the measurement of Assioma is not affected by errors related to very irregular pedalling (e.g. uphill sprints) or the use of oval chainrings. This is because Assioma is able to detect the actual instantaneous angular velocity during the whole pedal stroke, thus providing ±1% accuracy in any conditions. Not only in the lab.
Bluetooth and ANT
Assioma communicates with bike computers and smartphones (both Android and iOS) via Bluetooth and ANT .
Real dual-sided power data
Assioma DUO-Shi measures power individually on both legs; this makes possible to observe with accuracy not only Total Power, but also L/R Balance, Torque Effectiveness (TE), Pedal Smoothness (PS), etc.
Accuracy and consistency
Assioma guarantees accurate and consistent data in all conditions on the road, and at any temperature ranging from - 10°C and 60°C, thanks also to the ATC (Automatic Temperature Compensation).
Waterproof, resistant and light
Assioma is the lightest pedal-based power meter in the market. Thanks to its compact design, it never interferes with the pedalling: not even when cornering. The power sensors are protected by a bi-component resin block, extremely resistant to shocks and completely waterproof.
Rechargeable and green
Assioma is the only pedal-based power meter for road with integrated rechargeable batteries; a single charge ensures at least 50 hours of use.
Tested and guaranteed
Favero Electronics produces each power meter in-house and tests each of them thoroughly to fully satisfy the standard required by current regulations.
Specifications
Power sensors for the right and left pedal Dual-sided power measurement Cadence sensor: included, inbuilt Gyroscope: included, inbuilt Power calculation system: IAV (Instantaneous Angular Velocity-based) IAV Cycling Dynamics: yes Oval-chainring compatible: yes Battery type: rechargeable lithium battery Battery life: at least 50 hours Radio communication: Bluetooth v4.0, ANT PWR profile (CT PO) Accuracy power measurement: ± 1% Temperature compensation: -10°C / 60°C Waterproofness rating: IP67 Q-factor with PD-R7000/R550/R540: 64 mm; PD-R8000/6800: 65 mm; Bike type: road Made in Italy Warranty: 2 years Weight of Assioma DUO-Shi without pedal bodies: 99,0g per side (battery included) Weight of Assioma DUO-Shi with PD-R8000 pedal body: 157,0g per side (battery included) Adapter’s material: aerospace aluminium alloy Package content
Left power sensor with adapter for Shimano® pedal bodies* Right power sensor with adapter for Shimano® pedal bodies* Battery charger including plugs (EU, US, UK, AU) 2 two-meter long micro-USB/USB cables with 2 magnetic connectors Hex key and 4 washers for the installation Assioma user manual Assioma DUO-Shi user manual Assioma DUO-Shi Adapters Replacement Set
Adapters’ replacement set for Assioma DUO-Shi’s right and left pedals. It includes: two adapters with bearings, 4 M6 nuts, 4 O-ring for the oil retainers, 4 washers. This item does not allow to convert the Look® version to the Shimano® version, as the sensor has a different calibration.
Left Assioma-Shi Sensor with Adapter
Replacement of the LEFT Assioma-Shi sensor equipped with adapter. Attention: this item is compatible only with the following Shimano® pedal bodies: PD-R8000, PD-R7000, PD-6800, PD-R550 and PD-R540.
Right Assioma-Shi Sensor with Adapter
Replacement of the RIGHT Assioma-Shi sensor equipped with adapter. Attention: this item is compatible only with the following Shimano® pedal bodies: PD-R8000, PD-R7000, PD-6800, PD-R550 and PD-R540.
