THE SUPREME STIFFNESS-TO-WEIGHT RATIO OF CARBON SPOKES, IN A SERVICEABLE PACKAGE. THE FINAL WORD IN ROAD/ALL-ROAD DISC-BRAKE PERFORMANCE.
54 DEEP | 29 WIDE EXT | 20 WIDE INT | 1410G
The Purpose

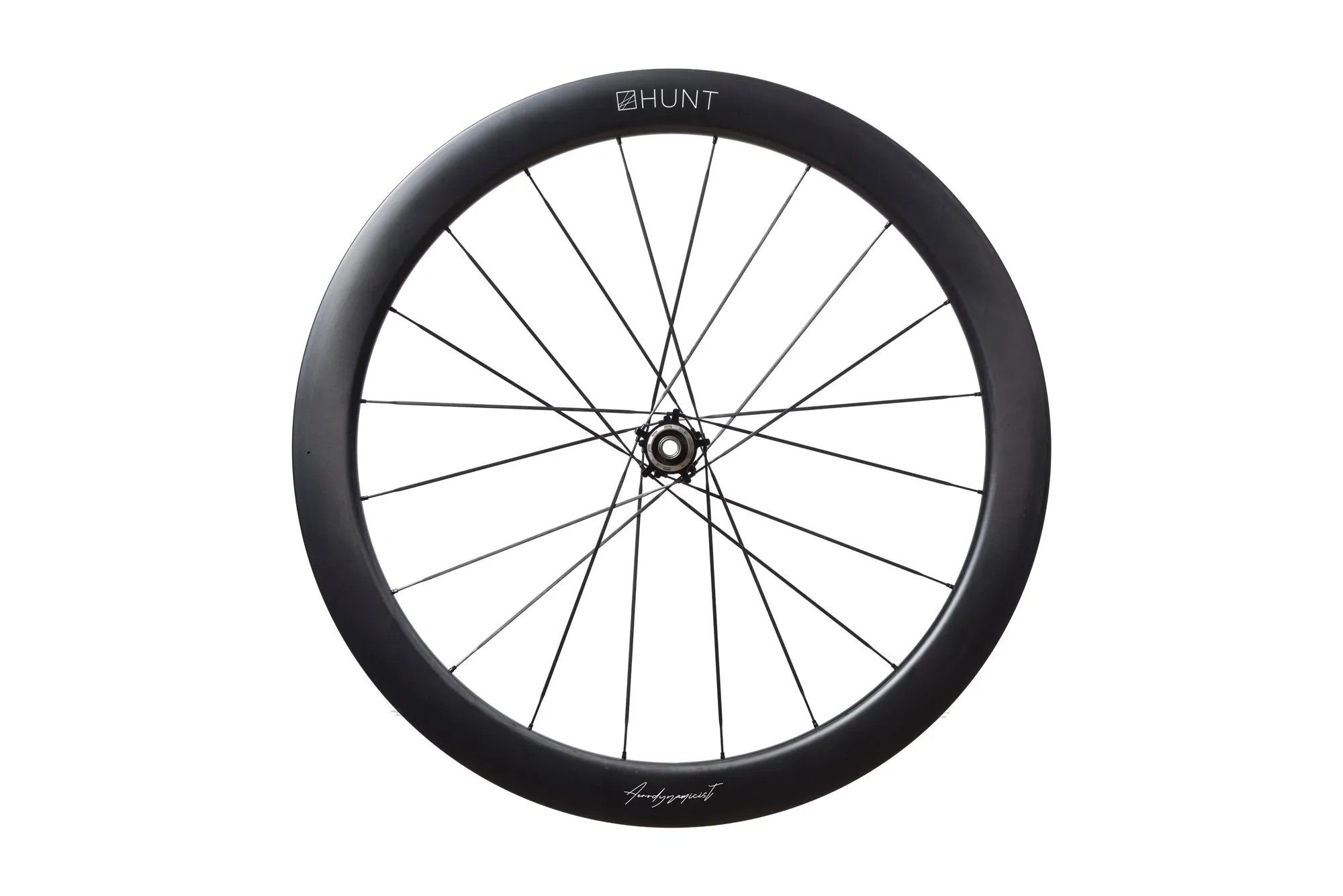

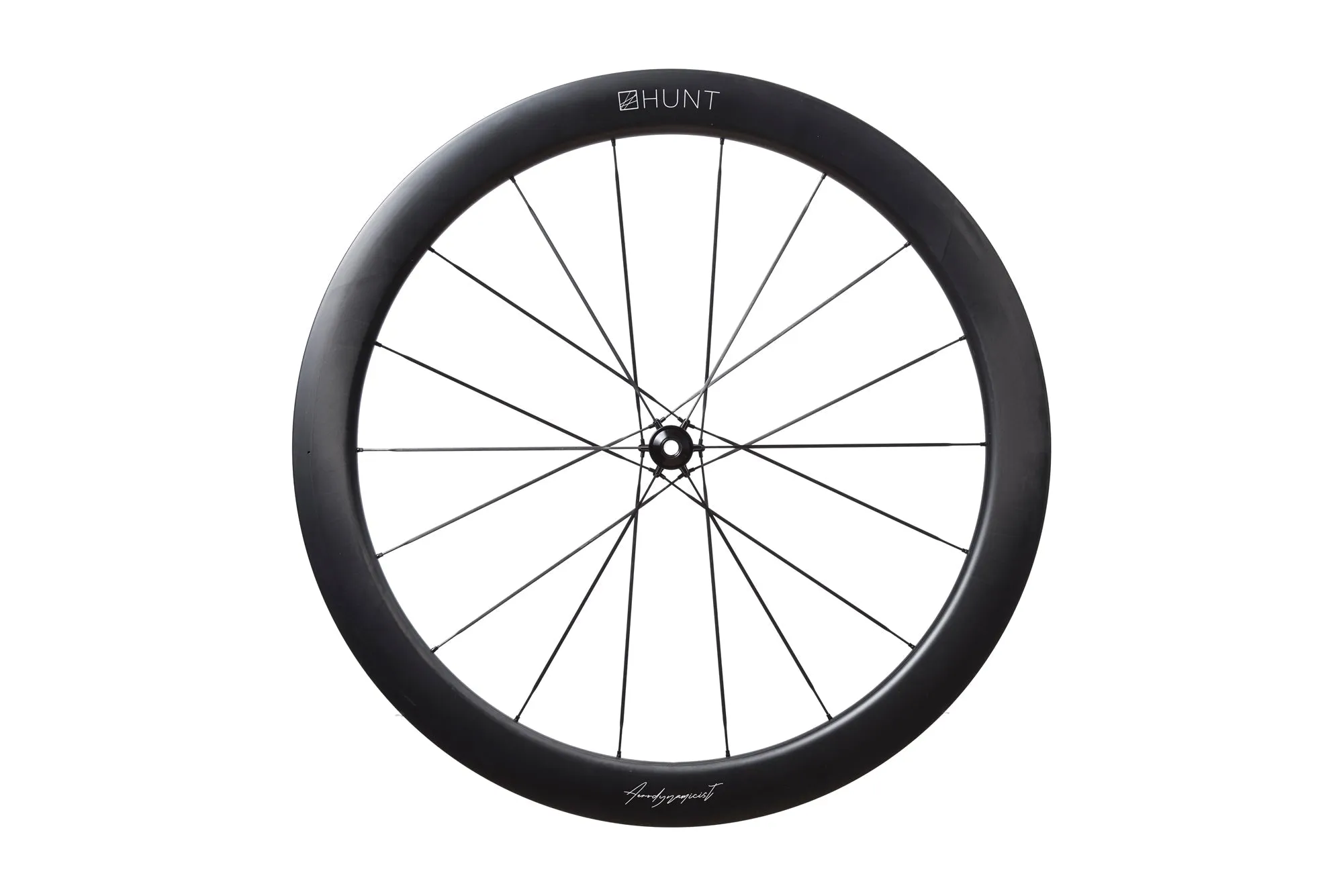

Introducing the 54 UD Carbon Spoke Disc, utilising our proven TaperLock carbon spoke technology, resulting in fully serviceable carbon-spoked wheels that can be trued like any other. With significant increases in lateral stiffness (see testing info below), they have been engineered to provide a stiffness-to-weight ratio previously unseen on serviceable wheels.

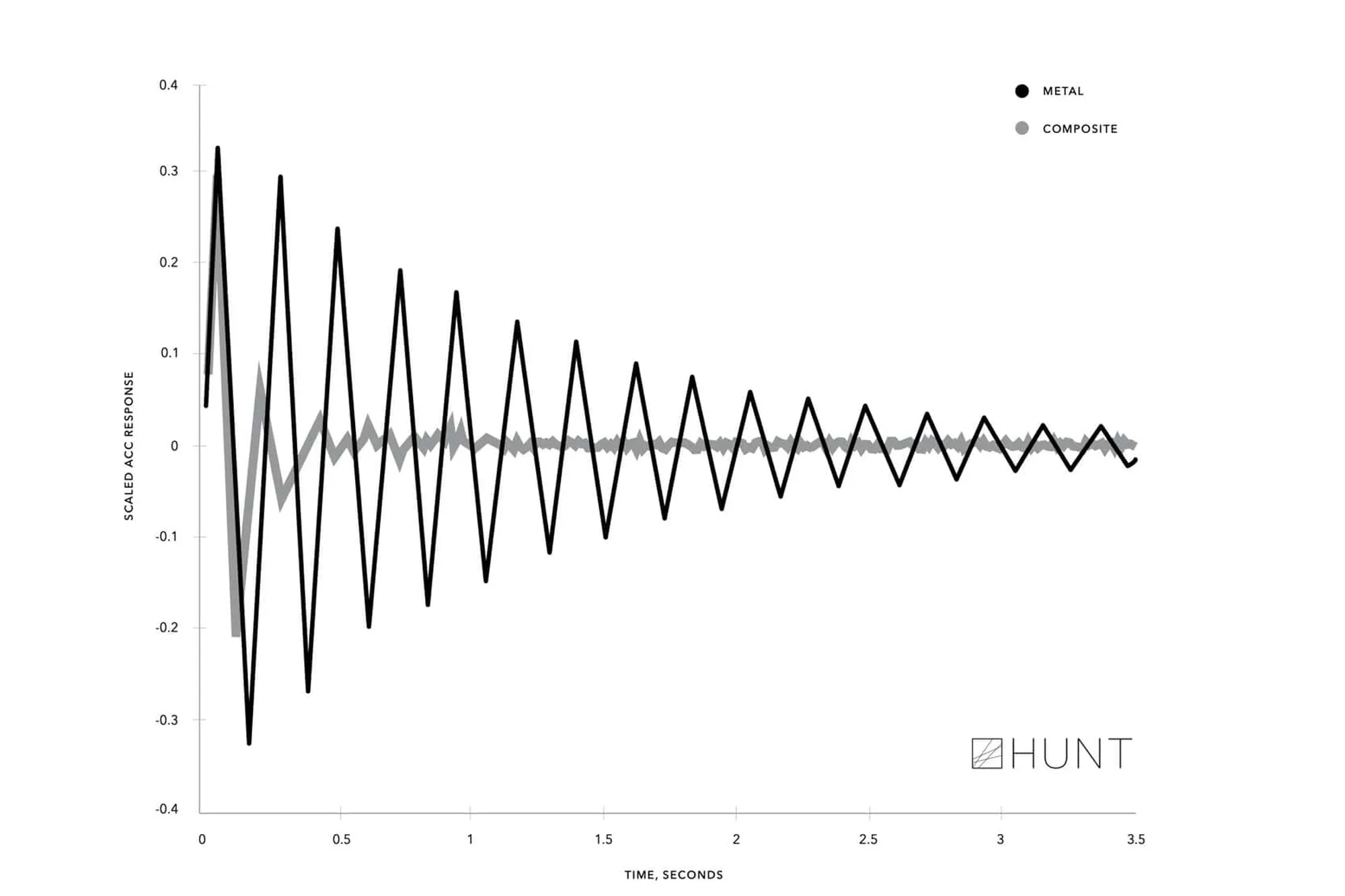

6% more laterally responsive than identical steel spoked wheel, with significantly less weight. Further benefiting from the high-frequency vibration absorption capabilities of carbon fibre in the UD spokes, as well as the rim. Please see graph in the "read more" section below.
Aerodynamicist 29mm-wide rim, exclusively engineered and wind tunnel tested by HUNT's in-house engineering team, featuring a hooked & ETRTO-compliant tubeless-ready rim, designed for full clincher & tubeless tyre compatibility.

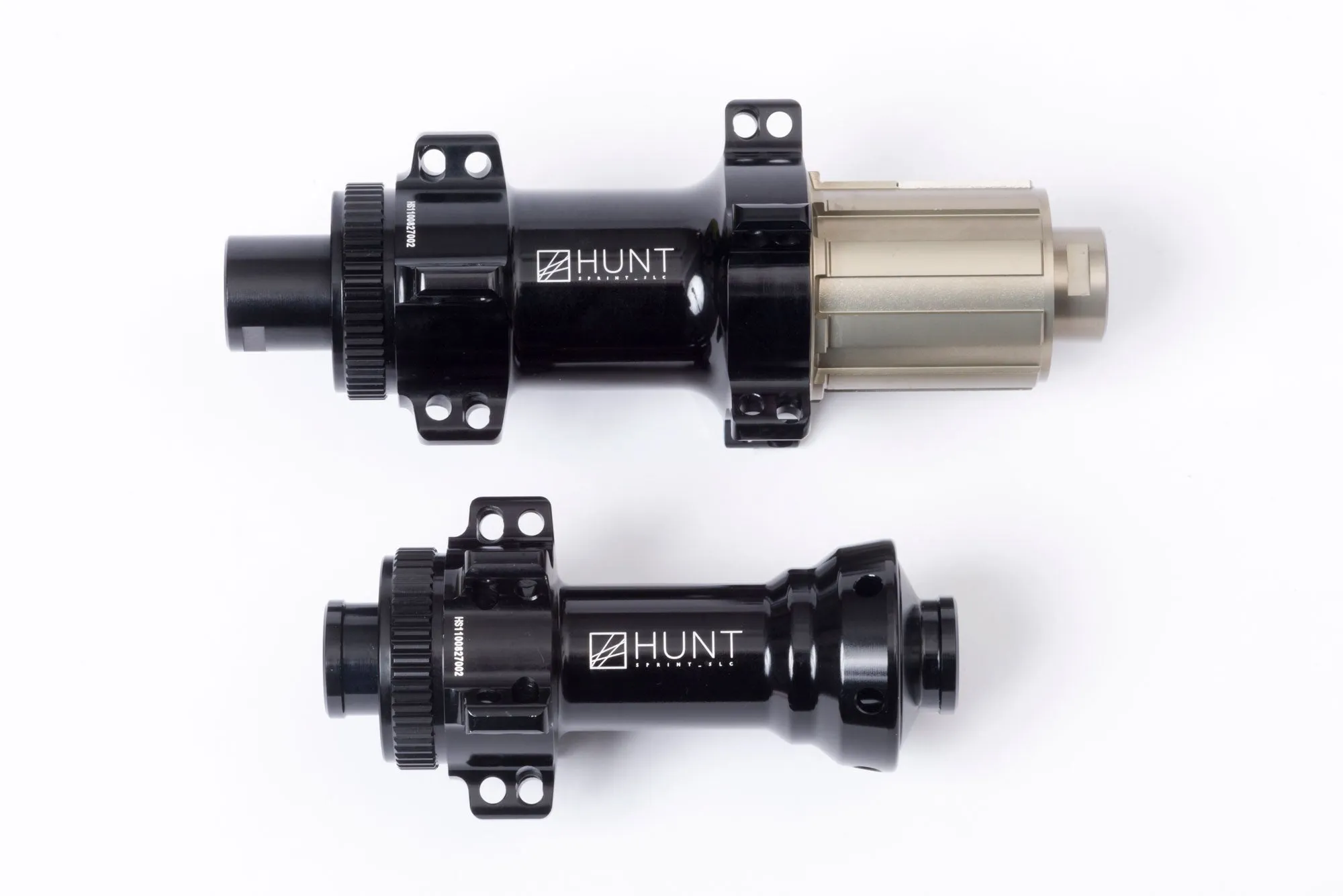

SLC Hubs
All-new Sprint SLC hubs add strength and enhance power transfer, meaning more of your power pushing you forwards. The hub shell is a cold-forged 7000 series alloy, offering a greater strength-to-weight ratio than extruded 6000 series alloys. Large 15mm diameter hub axles for sprinting and out-of-saddle climbing responsiveness. Circular dropout interface steps ensure a secure fitment.
WIND TUNNEL RESULTS
Using an innovative spoke-seating method, the 54 UD Carbon Spoke Disc wheelset offers carbon spokes that are held purely mechanically, with no bonding required. We call this TaperLock, and it allows for carbon spokes that can be trued and maintained just like a normal steel spoke.
The TaperLock UD Carbon Spokes are incredibly strong, achieving over 450 kgf (kilograms force per spoke) maximum tensile strength, compared to leading steel spokes which conventionally reach around 300 kgf.
For HUNT, aerodynamics and stiffness have to be considered as component parts of a more holistic understanding of performance componentry. That's why we always design with serviceability and usability in mind, because there's no point having a fast wheel you can't use with your favourite tyre, or that you can't easily maintain.
FULL WIND TUNNEL RESULTS
The Purpose
Introducing the 54 UD Carbon Spoke Disc, utilising our proven TaperLock carbon spoke technology, resulting in fully serviceable carbon-spoked wheels that can be trued like any other. With significant increases in lateral stiffness (see testing info below), they have been engineered to provide a stiffness-to-weight ratio previously unseen on serviceable wheels.
6% more laterally responsive than identical steel spoked wheel, with significantly less weight. Further benefiting from the high-frequency vibration absorption capabilities of carbon fibre in the UD spokes, as well as the rim. Please see graph in the "read more" section below.
Aerodynamicist 29mm-wide rim, exclusively engineered and wind tunnel tested by HUNT's in-house engineering team, featuring a hooked & ETRTO-compliant tubeless-ready rim, designed for full clincher & tubeless tyre compatibility.
SLC Hubs
All-new Sprint SLC hubs add strength and enhance power transfer, meaning more of your power pushing you forwards. The hub shell is a cold-forged 7000 series alloy, offering a greater strength-to-weight ratio than extruded 6000 series alloys. Large 15mm diameter hub axles for sprinting and out-of-saddle climbing responsiveness. Circular dropout interface steps ensure a secure fitment.
WIND TUNNEL RESULTS
Using an innovative spoke-seating method, the 54 UD Carbon Spoke Disc wheelset offers carbon spokes that are held purely mechanically, with no bonding required. We call this TaperLock, and it allows for carbon spokes that can be trued and maintained just like a normal steel spoke.
The TaperLock UD Carbon Spokes are incredibly strong, achieving over 450 kgf (kilograms force per spoke) maximum tensile strength, compared to leading steel spokes which conventionally reach around 300 kgf.
For HUNT, aerodynamics and stiffness have to be considered as component parts of a more holistic understanding of performance componentry. That's why we always design with serviceability and usability in mind, because there's no point having a fast wheel you can't use with your favourite tyre, or that you can't easily maintain.
FULL WIND TUNNEL RESULTS
Key Features
The ultimate performance of carbon spokes, in a usable package
- Rims | Aerodynamicist disc-specific rim profiles, designed from the ground up. Toray T700/T800 carbon-fibre with a stronger ratio of T800 (T40) fibres to achieve greater strength-to-weight ratio. Unidirectional sidewalls with 3K weave bed and spoke areas. Tubeless-ready for lower weight, rolling resistance and better puncture protection.
- Tyres | 20mm rim bed optimised for superior aerodynamic performance with a 25-28c tubeless tyre, but also very capable with a 23c. Tubeless-Ready.
- Hubs | New Sprint SLC straight-pull hubs, designed for carbon spokes. 15mm diameter 7075-T6 body and axle for supreme strength-to-weight. Circular dropout interface steps for added security in fitment. 3x treble-tooth pawls, resulting in rapid 7.5˚ engagement. Steel spline inserts to protect the cassette body.
- Axles | Easily adaptable & we fit them for you. Fit all current axle sizes and are easy to change; Front - QR, Bolt thru 12/9mm, Rear - QR, Bolt thru 12x142, 12x135, 10x135.
- Hand-built | All of our wheels are built and finished by hand, inclusive of a full quality control inspection.
- Weight | 1410g
Please note: If you require a 6 bolt adaptor you can purchase separately
The Experts' View
More Tech

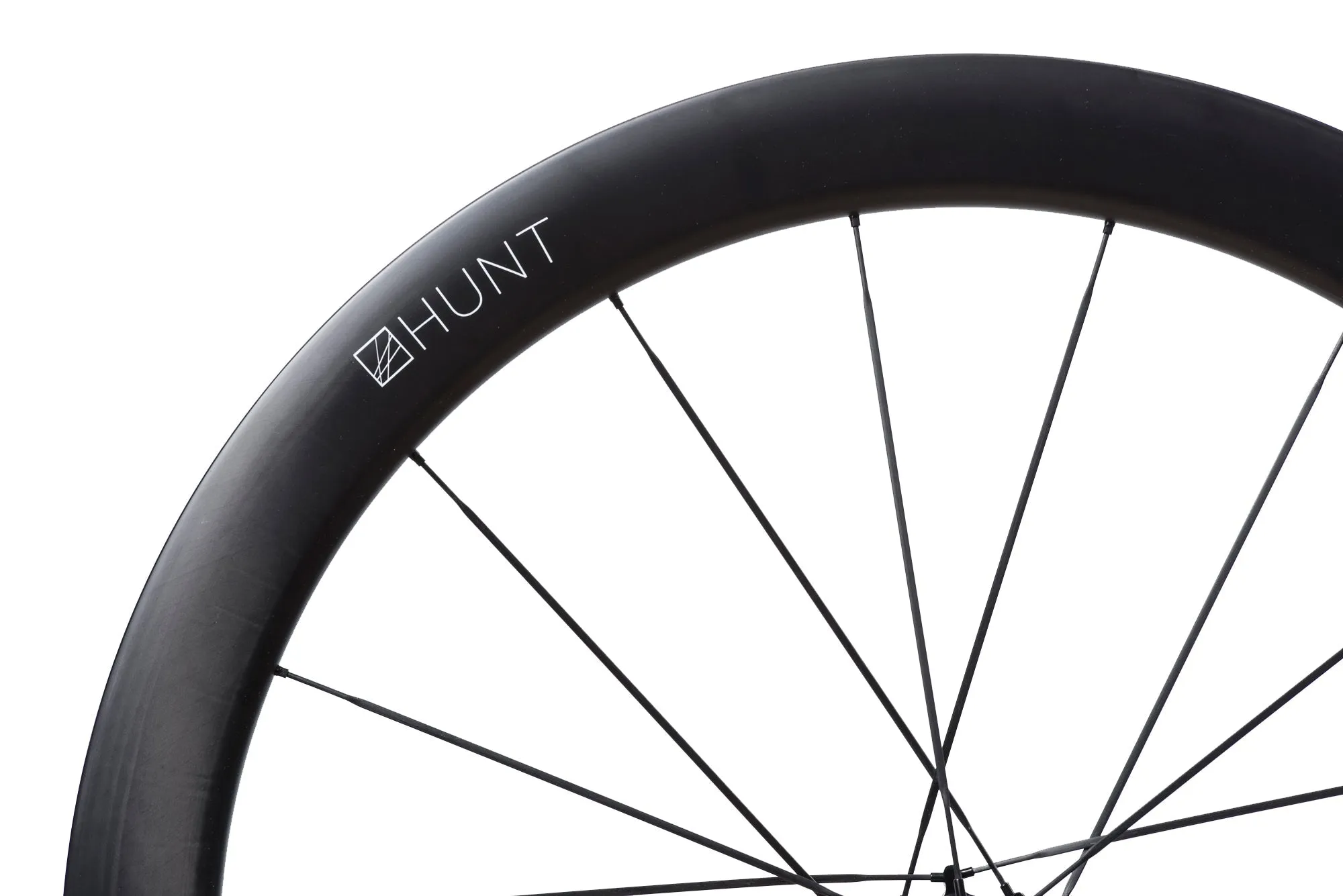

Rims

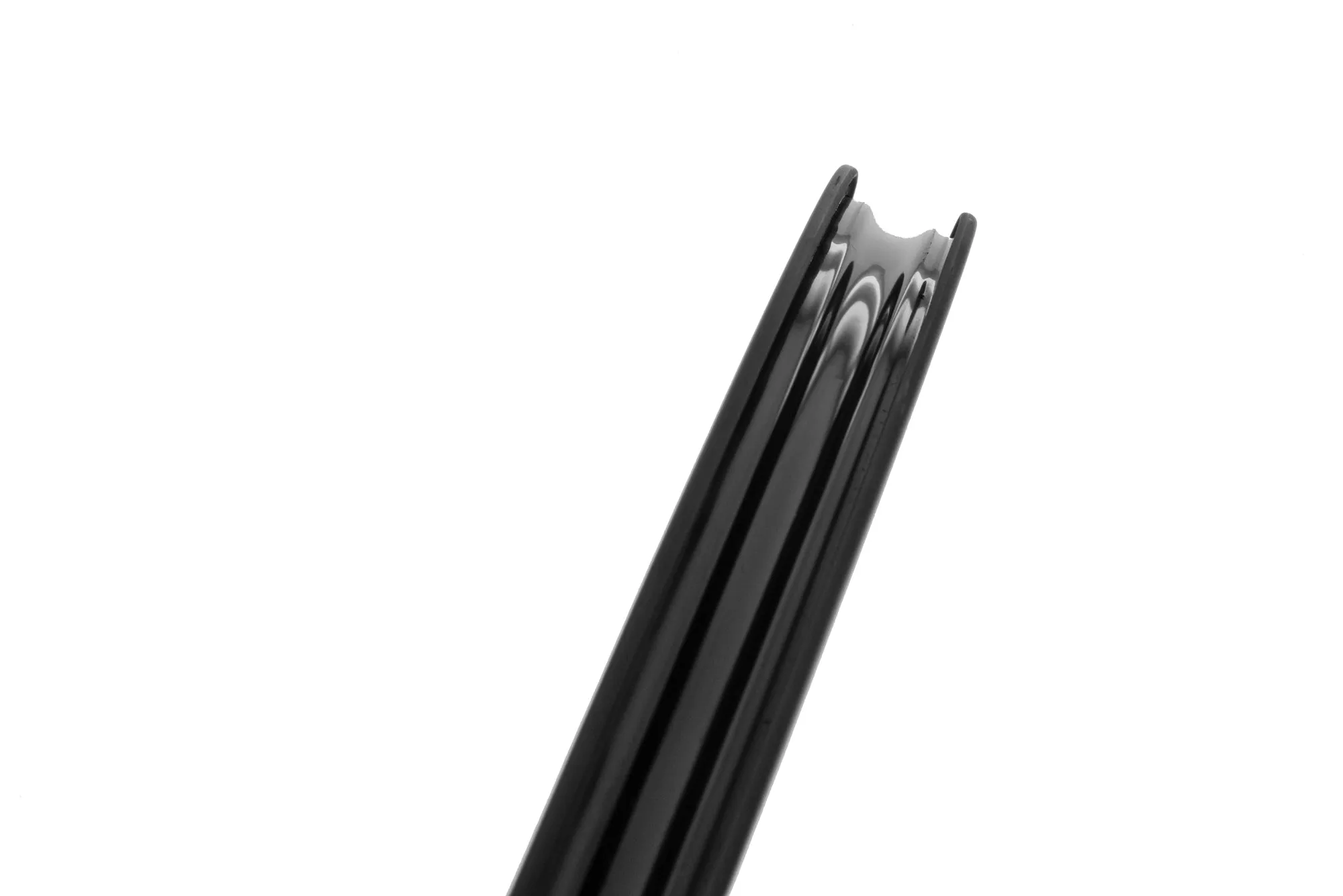

- Aerodynamicist profile, disc-specific & aerodynamically optimised for 25-28c tyres
- Unidirectional T24/30 carbon fibre with 3K weave re-enforced spoke holes
- 29mm outer and 20mm internal, ideal for 23-50mm tyre widths
- 54mm depth
- H_LOCK bead-seat up-kicks, for easy and secure tubeless installation
- Matt black base finished with matt white contrasting graphics.
Spokes
- UD carbon fibre spokes with incredibly high strength, stiffness and weighing only 2.7g per spoke
- 18 front (2 cross on rotor side, radial on drive side) and 20 rear (2 cross both sides).
Nipples

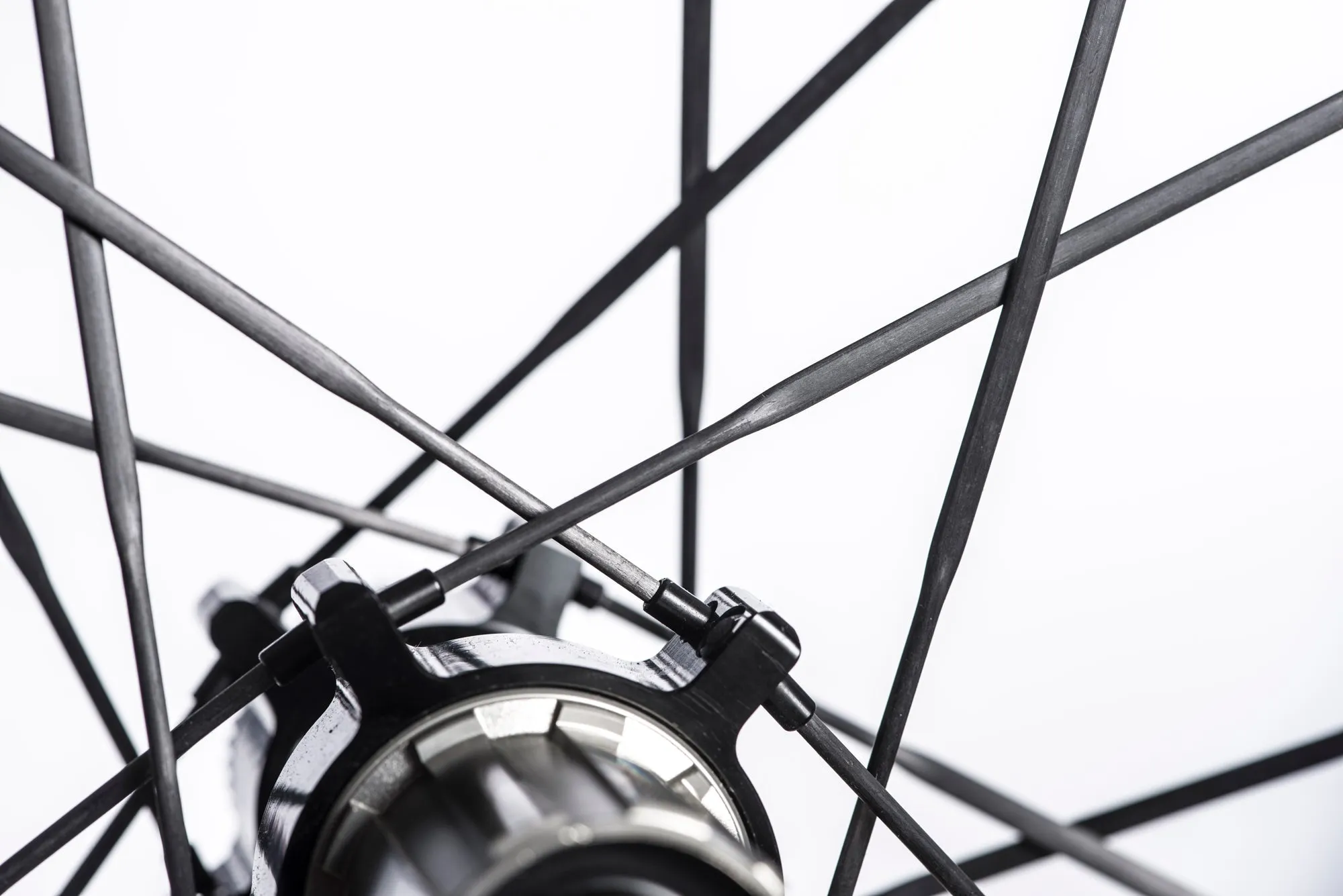

- TaperLock nipples secure spoke head to the hub
- Square mandrel mounted at the rim end to prevent spoke twisting when truing/replacing
- Internal nipple for truing
- Black anodized finish.
Tyres Info
- Maximum tyre pressure for this rim is 100psi when used with 25-28mm tyres. 100 psi is more than enough for any rider on road. to listen to a podcast exploring the science of why lower pressures were found to be faster by pro teams.
- Maximum tyre pressures for other tyre sizes: 30mm - 32mm do not exceed 70psi, 33mm do not exceed 50psi, 35-45mm do not exceed 45psi, 45-50mm do not exceed 40psi
- Please do not exceed the maximum pressure stated on your tyre.
- Suitable for tyres from 23mm up to 50mm wide.
- Suitable tubeless road, gravel and CX tyres are available from a huge range of companies.
Axle Size
- These wheels are available with all existing disc brake road bike axle adapter sizes. All our axle adapters are easy to swap but we'll fit the adapters your bike needs to save you the work. After your order checkout is completed a simple form will show, as well as being sent to you in your confirmation email. The form allows you to select the axle size your bike needs, don't worry it also includes the option to tell us your bike model and we will find out and then fit the correct axles, plus we're happy to change them later at our cost if you don't quite get it right. Please note; this form is shown after you have completed your order. Please click on the Front Hub and Rear Hub tabs to see which sizes are available.
Front Hub
- TaperLock spoke interface
- All existing road/CX disc front axle standards are available including:
- Quick Release (skewers included)
- 12mm Bolt Thru
- All axle adapters are also available separately.
- Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
- 7075-T6 aluminium alloy axles.
- Centre-lock disc mount. f you require a 6 bolt adaptor you can purchase separately
- Polished anodized black finish with laser graphics.
- HUNT SPRINT Disc straight-pull super-light alloy.
Rear Hub
- TaperLock spoke interface
- All existing road/CX disc rear axle standards are available including:
- Quick Release (Quick release skewers included)
- 12x142 Bolt Thru
- 12x135 Bolt Thru (uncommon)
- 10x135 Bolt Thru (uncommon)
- All axle adapters are also available separately.

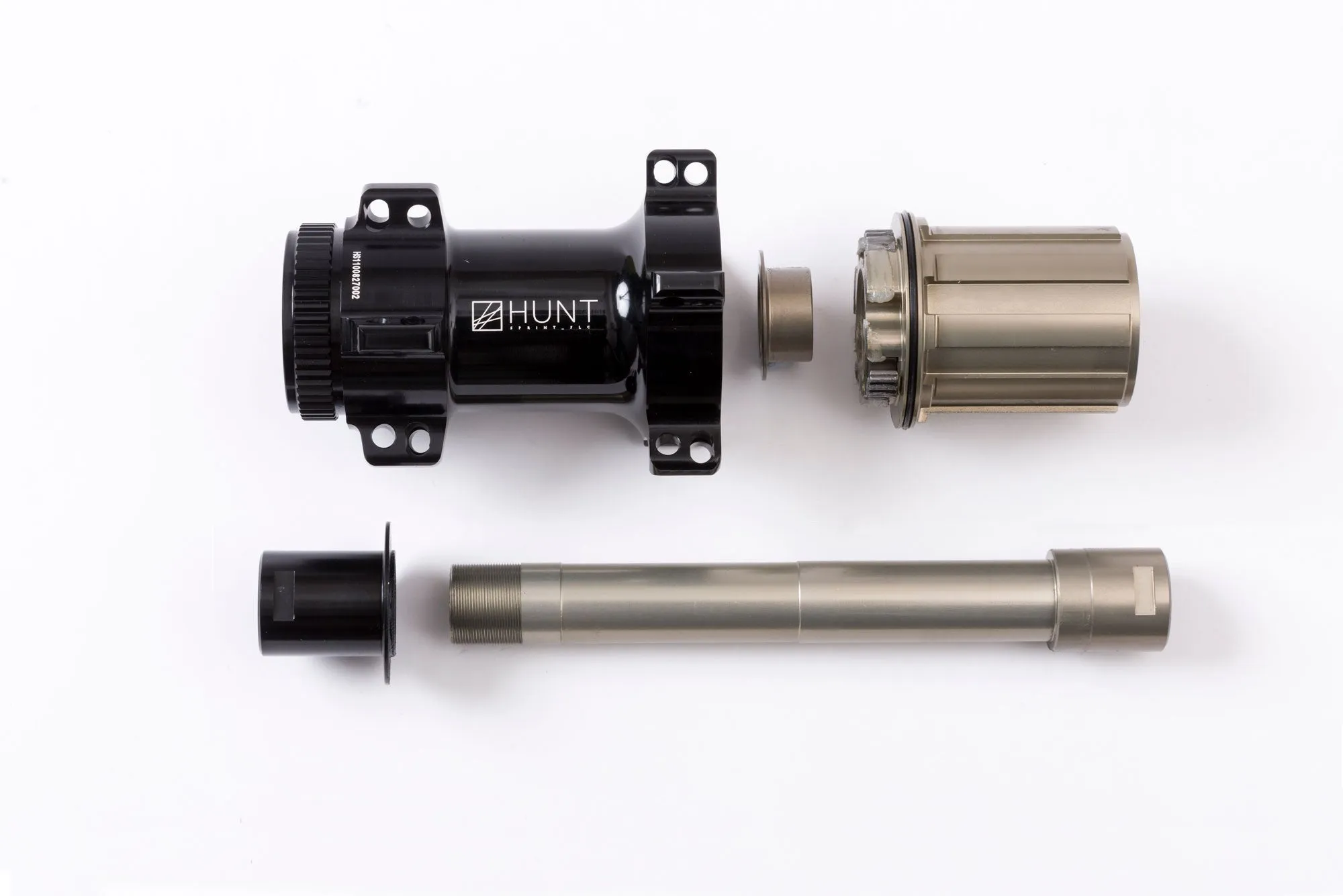

- 7075-T6 heat-treated aluminium alloy freehub body.
- Steel Spline Insert freehub body reinforcement provides excellent durability against cassette sprocket damage to the freehub often seen on standard alloy freehub bodies.
- 3x treble-tooth individually leaf sprung pawls with 48 teeth on the ratchet ring for fast 7.5 degree engagement and instant acceleration.
- All freehub standards accounted for, including:
- Shimano/SRAM
- Campagnolo
- SRAM XD Driver
- SRAM XDR Driver
- HUNT SPRINT Disc straight-pull super-light alloy.
- Forged and CNC’d 6061-T6 heat treated aluminium alloy body.
- 7075-T6 aluminium alloy axles.
- Centre-lock disc mount. f you require a 6 bolt adaptor you can purchase separately
- Polished anodized black finish with laser graphics.
Bearings
- High-grade Japanese EZO bearings.
- Rear hub upgraded to even faster rolling LU/LB low-friction sealed internal face, dual sealed external face bearings.
- Incredibly fast rolling.
Warranty, HUNT Rolling Road Tests & Weight Limits
A full 3 years from purchase date warranty is offered to the original purchaser only on all Hunt bike wheels against material or workmanship defects,
All HUNT wheels models have to pass our harsh cobbled-rolling-road tests for rider weight limits, . Max system weight 120kg (system weight – total weight of fully kitted up rider, bike and luggage). If a rider is over 105Kgs then an experienced bike mechanic should check the wheel regularly and it is advisable to use tyres at max 90psi as this will reduce the fatigue on the wheelset. We are cyclists ourselves and do of course go above and beyond to offer excellent service if you ever do experience any issues. We carry full spares at very reasonable prices and offer complete support.
60 Day Ride & Return Period. We are certain you'll be impressed by the acceleration, low-weight, speed and durability of our wheels. We are cyclists and as such strive to offer class leading service and support. Buy with confidence, if for any reason you wish to return the wheels for a full refund of your order you can do so up to a full 60 days after you receive them whether they have been ridden or not.
